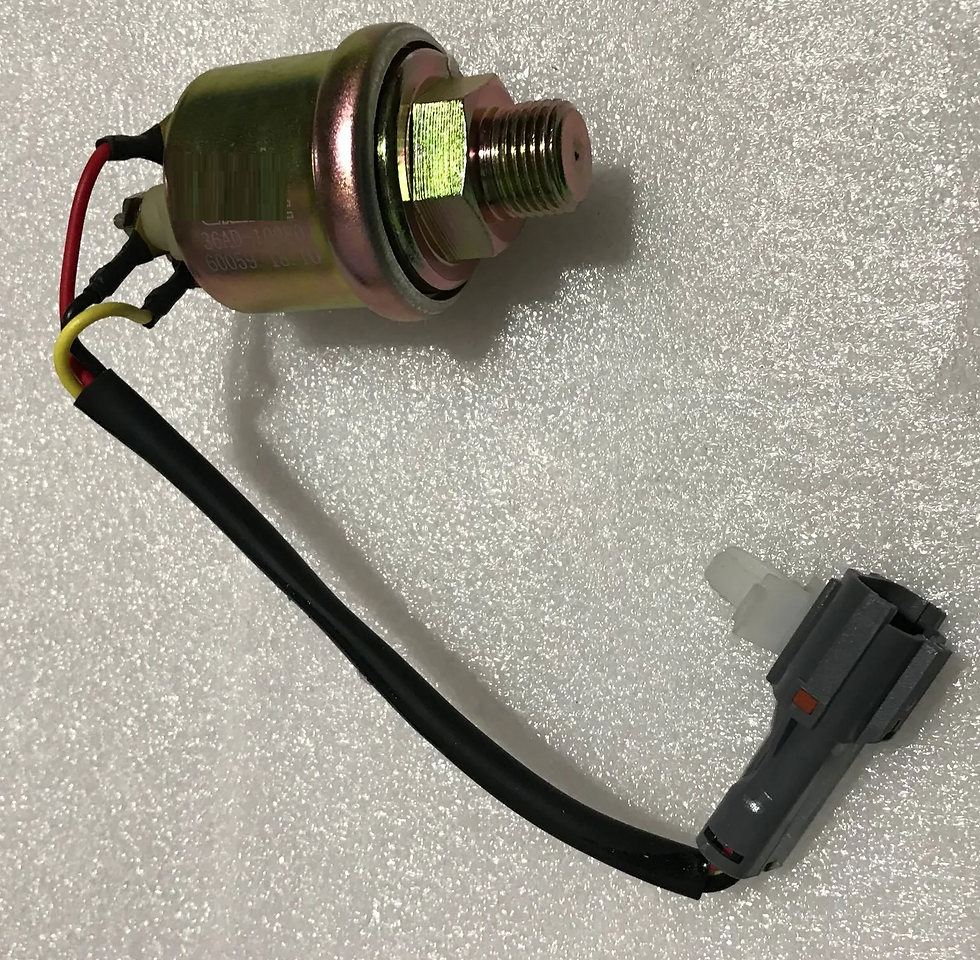

UNIVERSAL AUTOMOTIVE DIESEL ENGINE GENERATOR VDO 3PIN 0-5 BAR OIL PRESSURE SENSOR 360-081-063-001C

Basic Information

Model NO: 360-081-063-001C

Thread Type: NPT

Wiring Type: Three-Wire

Measuring Medium: Diesel

Certification: ISO

Customized: Non-Customized

Color: Silver

Voltage: 6V-24V

Thread: M12 X 1.5

Specification: 0.1kg

Origin: Shenzhen, China

Description Of 3pin 0-5 bar Oil Pressure Sensor 360-081-063-001c

For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is supplied by a separate connection. Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has been reached, as well as carry out the continuous measurement.

Version: Spring Type Measuring Range: 0-5 Bar Rated Voltage: 6V to 24V Warning Contact: Close As Pressure Falls Switching Capacity Of Warning Contact: 5 W MAX, Noninductive Operating Temperature: -25°C To +100°C Resistance Range: 10 Ω to184 Ω Connector: 3 Pole Application: Marine, Genset, Vehicles
